Protocol messages

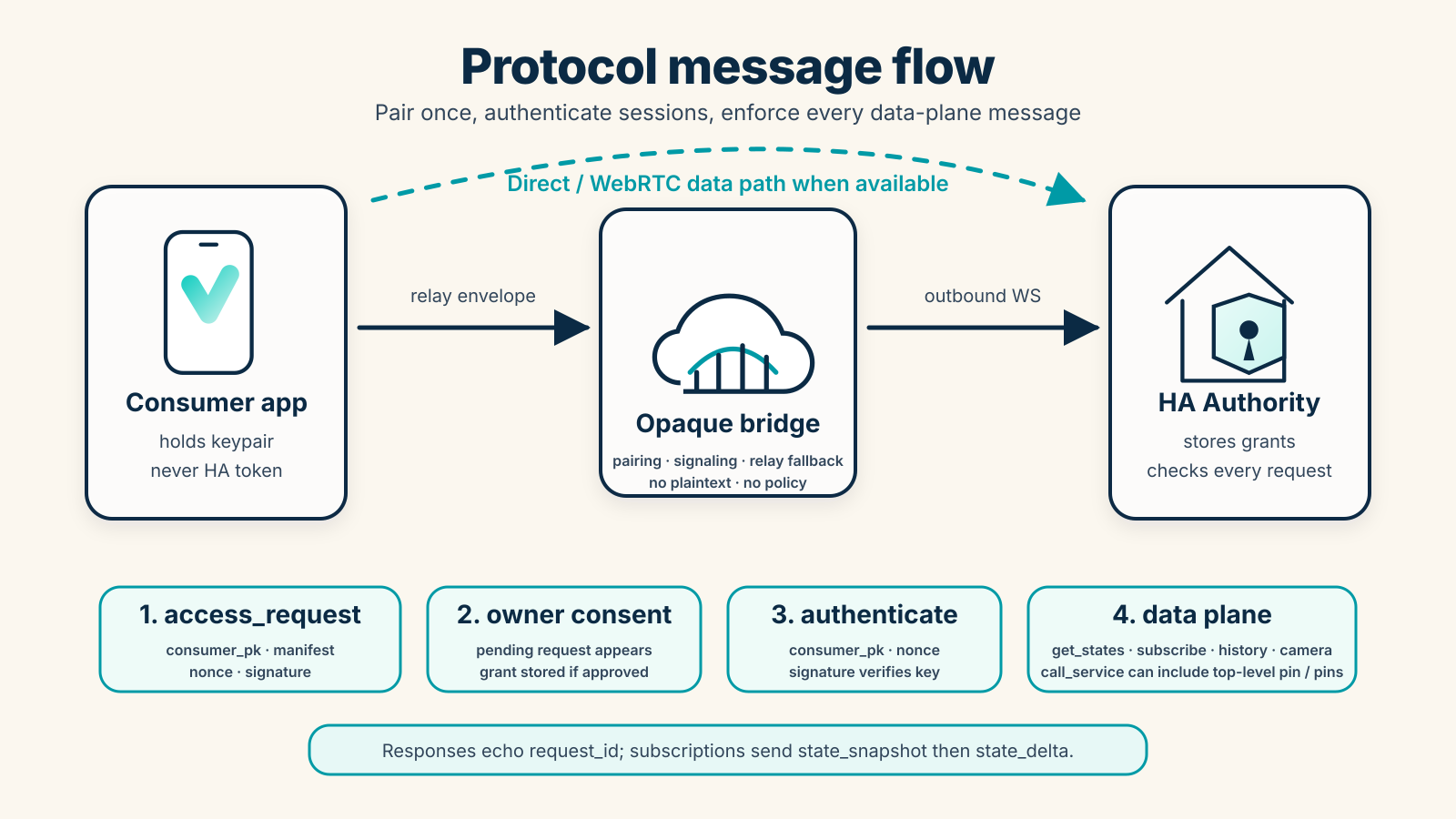

This page covers consumer-to-Authority messages, which travel end-to-end encrypted through the bridge. The plaintext Authority-to-bridge handshake (challenge/auth/ready, including the proto version field) is documented in Bridge endpoints.

Messages handled by the Authority:

Message type	Request fields	Response	Scope checked
access_request	consumer_pk, manifest, nonce, signature	access_request_pending (access_request_id, pairing_code)	Signature only; creates pending request.
claim_share	share_id, secret, consumer_pk	share_claimed (grant_id, manifest)	Claimable share exists, secret matches, and claims used is below max_claims; creates a grant for consumer_pk.
authenticate	consumer_pk, nonce, signature	authenticated (grant_id, manifest)	Active grant for consumer key. The signature covers varco-authenticate-v1\0 + nonce + \0 + the session channel binding, so it cannot be replayed in another encrypted session.
grant_info	none	grant_info (grant_id, manifest)	Authenticated session. Returns the stored manifest for generic clients that were not built with a manifest at development time.
get_states	entity_ids	states	read_entities.
subscribe_states	entity_ids	state_snapshot, then state_delta events	subscriptions plus read_entities.
unsubscribe_states	subscription_id	unsubscribed	Authenticated session.
history_query	entity_ids (max 10), optional start_time/end_time (range clamped to 30 days)	history_result (history, truncated, range_clamped; max 5000 points per entity)	history.
camera_snapshot	entity_id	camera_snapshot	camera_snapshots.
call_service	domain, service, service_data, target; optional top-level pin or pins	{ type: "service_called", request_id, ok: true }	actions.
webrtc_offer	SDP offer	webrtc_answer or webrtc_unavailable	Active grant.
webrtc_ice	ICE data	webrtc_ice_ack or webrtc_unavailable	Active grant.

Errors use:

{
  "type": "error",
  "request_id": "optional request id",
  "code": "permission_denied",
  "message": "Entity not allowed"
}

Data-plane rate limits

The Authority enforces an in-memory per-consumer rate budget on all authenticated data-plane operations (default 240 weight units per 60 seconds). Each operation costs 1 unit, except history_query and camera_snapshot (5 units) and call_service (2 units). Requests over budget return an error with code: "rate_limited" and are audited as rate_limited without sensitive payloads.

Restriction-aware requests

Approved grants may include owner-managed restrictions. These are evaluated only by the Home Assistant Authority, after the normal grant scope check, in declaration order (fail-fast).

For PIN-protected operations, include pin (single PIN) or pins (object keyed by restriction id) at the top level of the request, not inside service_data:

{
  "type": "call_service",
  "domain": "lock",
  "service": "unlock",
  "target": { "entity_id": "lock.front_door" },
  "pin": "1234"
}

The Authority denies the request if the matching restriction is expired, outside schedule, rate-limited, missing a required PIN, or has an invalid PIN. Restriction failures return permission_denied and are audited as restriction_denied.

All responses echo the request_id from the originating request.

Subscription responses

subscribe_states returns two distinct message types:

• state_snapshot: sent once on subscription with the full current states for all requested entities.
• state_delta: sent on each Home Assistant state change; contains only the changed entities and the subscription_id.
