Grants and scopes

A consumer manifest describes the maximum access the consumer wants. If the owner approves it, Home Assistant stores a grant bound to the consumer public key.

The grant is enforced by the Authority on every data-plane message.

Manifest capabilities

A manifest may request:

• read_entities: entity state snapshots. Read-scoped entities can also be subscribed for live updates.
• subscriptions: live state updates for entities not already in read_entities. The Authority computes subscribe access as the union of subscriptions and read_entities, so listing the same entity in both is redundant.
• history: recorder history queries.
• camera_snapshots: camera snapshot retrieval.
• actions: Home Assistant service calls.

Entity scopes

Entity scopes support exact entities, domain wildcards, and *:

sensor.temperature
sensor.*
*

Use narrow scopes whenever possible.

Action scopes

Action scopes use one of these forms:

light.turn_on@light.kitchen
light.*
light.*@light.kitchen
*@cover.awning

Meaning:

• light.turn_on@light.kitchen: allow only one service on one entity.
• light.*: allow any service in the light domain, but only when the targeted entities also belong to the light domain, or when the call has no entity target. An entity-less call may affect every entity in the domain, depending on the service.
• light.*@light.kitchen: allow any service in the light domain, but only when it targets that one entity.
• *@cover.awning: allow any service targeting one entity, including services from other domains.

Service calls may also target area_id, device_id, or label_id. The Authority resolves those targets to entity IDs through the Home Assistant area, device, entity, and label registries, then checks every resolved entity against the action scopes. The call is denied if any resolved entity is not authorized, or if a target cannot be resolved (unknown ID, registries unavailable). When all resolved entities pass, the original target is forwarded unchanged so Home Assistant performs its own resolution.

Runtime subscriptions

A grant defines the maximum allowed scope. A runtime subscription defines the current subset of entities the consumer wants to observe.

1. Consumer sends subscribe_states with entity IDs.
2. Authority validates every entity against the union of the grant’s subscriptions and read_entities scopes.
3. Authority stores a runtime subscription for that session.
4. Authority returns an initial state_snapshot with the full current states.
5. Home Assistant state changes produce state_delta events for matching subscriptions; each delta carries only the changed entities and the subscription_id.
6. Consumer sends unsubscribe_states to remove the runtime subscription.

Owner-managed grant restrictions

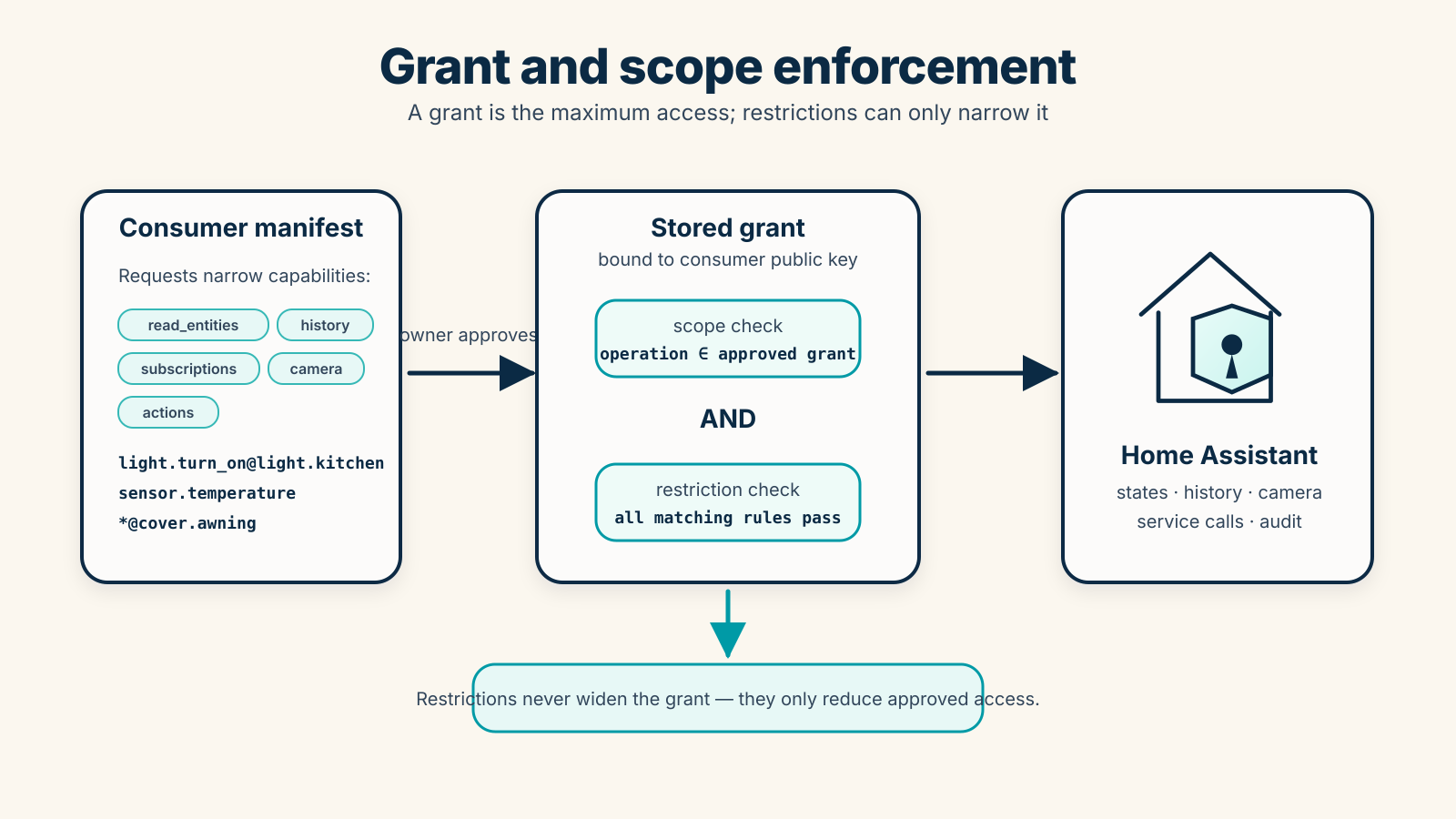

A grant is the maximum permission boundary approved by the Home Assistant owner. The owner can add mutable restrictions to an approved grant to narrow that access without issuing a Home Assistant token to the consumer and without trusting the relay.

Effective access is:

stored grant scope allows the operation
AND
all enabled matching restrictions allow the operation

Restrictions are enforced by the Home Assistant Authority on every data-plane request. They never widen a manifest scope, and the bridge/consumer are not trusted to enforce them.

Owners manage restrictions in the Varco panel from each grant card. The panel can add restrictions, toggle them enabled or disabled, edit their parameters in place, and remove them. All changes are persisted through varco/update_grant_restrictions and remain a narrowing layer on top of the stored grant.

When an owner changes a grant’s restrictions, the Authority clears active subscriptions for that grant and sends the consumer a grant_restrictions_updated error event. The consumer must create new subscriptions under the updated restrictions. Non-subscription requests continue on the same authenticated session, but are checked against the updated restrictions on the next request.

A restriction has this generic shape:

{
  "id": "front-door-pin",
  "enabled": true,
  "type": "pin",
  "applies_to": "lock.unlock@lock.front_door",
  "params": {
    "pin_hash": "pbkdf2_sha256$..."
  }
}

applies_to may be grant, read, subscriptions, history, camera, actions, or an action selector such as light.turn_on@light.kitchen, light.*, or *@cover.awning.

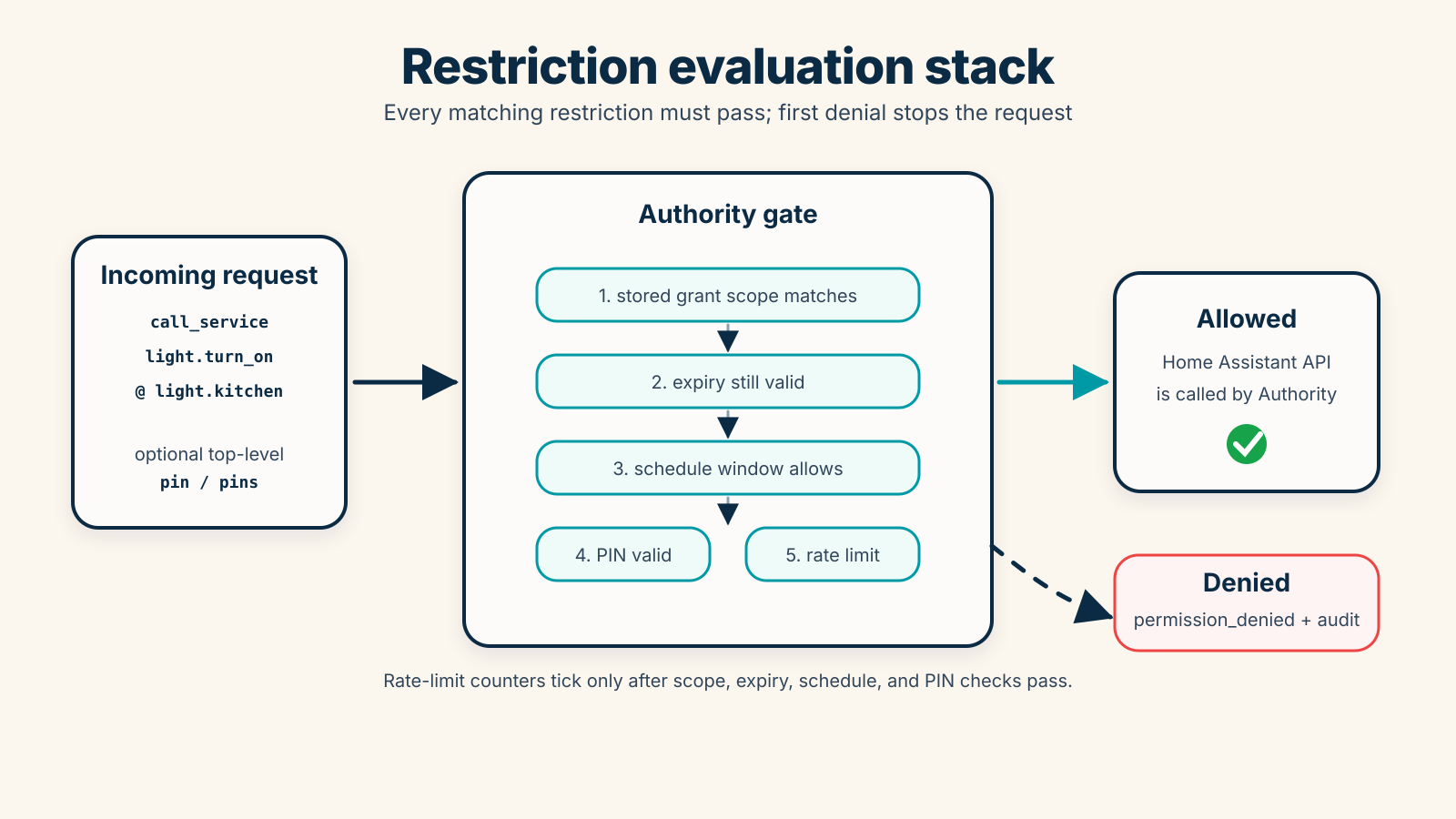

Restrictions are evaluated in declaration order. The first matching restriction that denies the operation stops evaluation immediately (fail-fast). Rate-limit counters are a second pass: they are only incremented when all stateless checks (expiry, schedule, PIN) have passed.

Implemented restriction types:

• expiry: deny after params.expires_at, an ISO timestamp. The type alias expires_at is also accepted, as is placing expires_at directly on the restriction root rather than inside params.
• schedule: allow only on configured days (lowercase three-letter abbreviations: mon–sun), start_time, and end_time (both HH:MM).
• pin: require a matching request PIN. PINs are stored hashed with pbkdf2_sha256; owners can change or remove them but not retrieve the plaintext.
• rate_limit: limit matching operations with limit and window_seconds. An optional cooldown_seconds enforces a minimum gap between consecutive operations.
• template (advanced): allow only when params.value_template, a Home Assistant Jinja2 template, renders truthy (true, 1, yes, on). The template is evaluated only inside the Home Assistant Authority via homeassistant.helpers.template; the consumer and bridge never see it. A missing template, a render error, or a falsy result denies the operation (fail closed), audited as template_not_configured, template_error, or template_denied without the template result.

Example template restriction that allows unlocking the front door only while the alarm is disarmed:

{
  "id": "alarm-disarmed",
  "enabled": true,
  "type": "template",
  "applies_to": "lock.unlock@lock.front_door",
  "params": {
    "value_template": "{{ is_state('alarm_control_panel.home_alarm', 'disarmed') }}"
  }
}

For service calls protected by a PIN, the consumer sends either a top-level pin for the matching restriction or a pins object keyed by restriction id:

{
  "type": "call_service",
  "domain": "lock",
  "service": "unlock",
  "target": { "entity_id": "lock.front_door" },
  "pins": { "front-door-pin": "1234" }
}

Denied restrictions are audited as restriction_denied with the restriction id and reason, without logging entity state, camera data, history payloads, or sensitive service data.
